- For connecting two profiles of the same series
- Loosen screw for free rotation and sliding along the slots
- Compatible with all conventional aluminium profiles

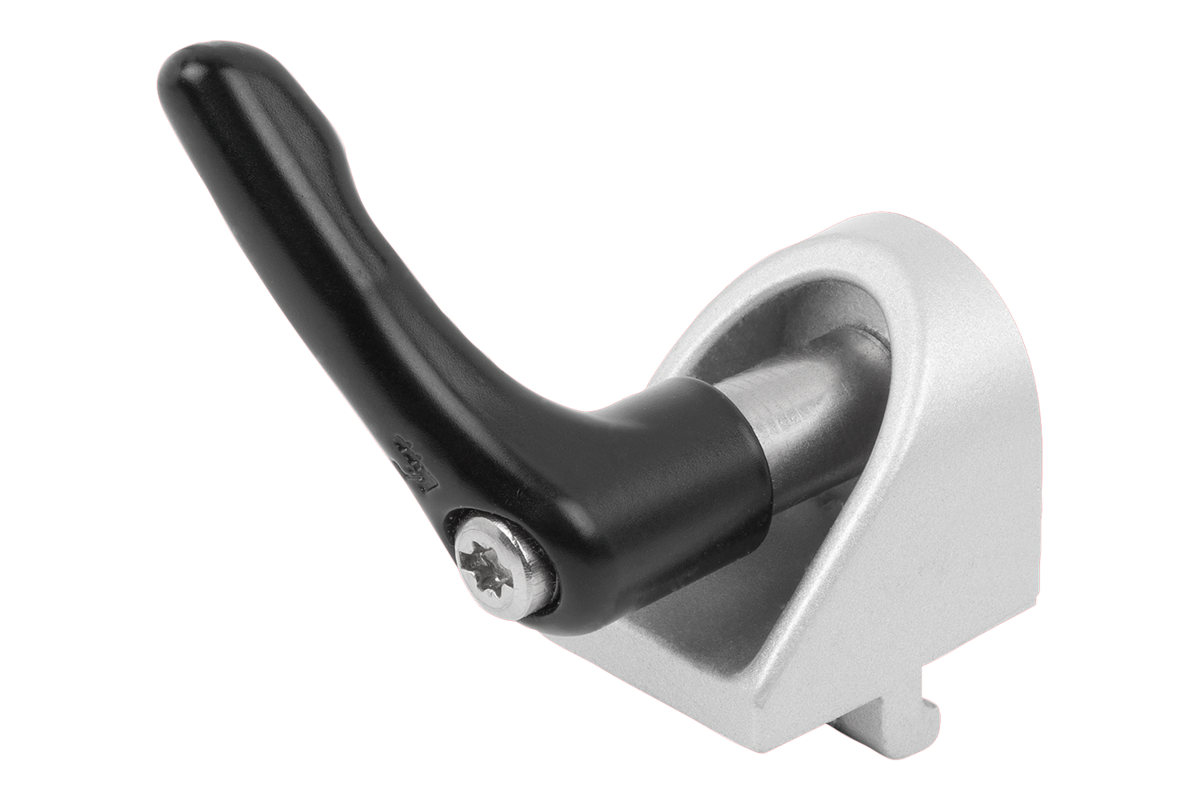

Description
Material
Clamping angle die-cast zinc.
Handle die-cast zinc DIN EN 12844.
Metal parts stainless steel 1.4305.
Version
Clamping angle painted aluminium tone.
Handle powder-coated.
Stainless steel bright.
Handle powder-coated.
Stainless steel bright.
Note

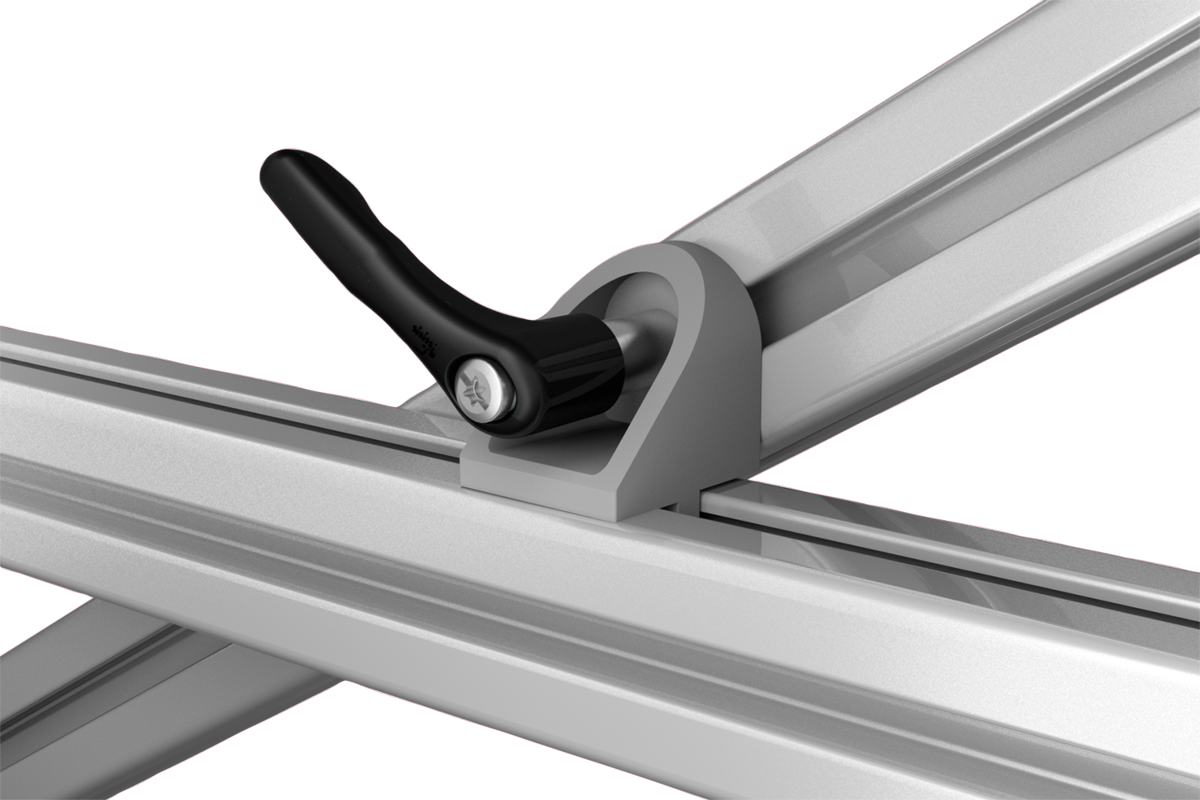

The clamping angles are used for connecting two profiles of the same series that have contact on the side faces and cross at any angle.
Loosening the screw releases both clamps allowing free rotation and sliding along the slots.
The clamping angles are generally used in pairs or in combination with a joint angle.
Loosening the screw releases both clamps allowing free rotation and sliding along the slots.
The clamping angles are generally used in pairs or in combination with a joint angle.
